5V Power regulator pcb board for Nintendo Game Boy Color & Pocket IPS OLED mods | OSH
Features
- Open source power regulator PCB for Game Boy Color & Game Boy Pocket
- Provides stable 5 V power for improved stability with modern IPS & OLED screens
- Replaces the original power regulator board
- Designed for use with modern IPS and OLED screens only
- Includes header pins for installation (requires soldering to install)
Description
This simple open source power regulator board is designed for use in Nintendo Game Boy Color and Game Boy Pocket consoles fitted with modern IPS or OLED display upgrades. It replaces the original factory power board, providing stable power delivery suitable for higher-draw modern screens.
The original regulator must be fully removed from the motherboard before installation. Once removed, this replacement board is soldered directly to the console using four solder points. Header pins are supplied to assist with installation and alignment. This regulator is intended for experienced installers and modders familiar with console disassembly and soldering.
This product is not compatible with original OEM LCD screens. It is designed specifically for upgraded display installations where improved power regulation is required.
Manufactured in house using the original open source design and original parts list, 1.2mm thickness with ENIG finish, thanks goes to Jackv-makes for making this design available to all.
Further Info
- Product: Power Regulator PCB for Game Boy Color and Game Boy Pocket
- Compatibility: Game Boy Color and Game Boy Pocket consoles
- Display Compatibility: IPS and OLED screens only
- Installation: Original regulator removal required
- Solder Points: Four points after original board removal

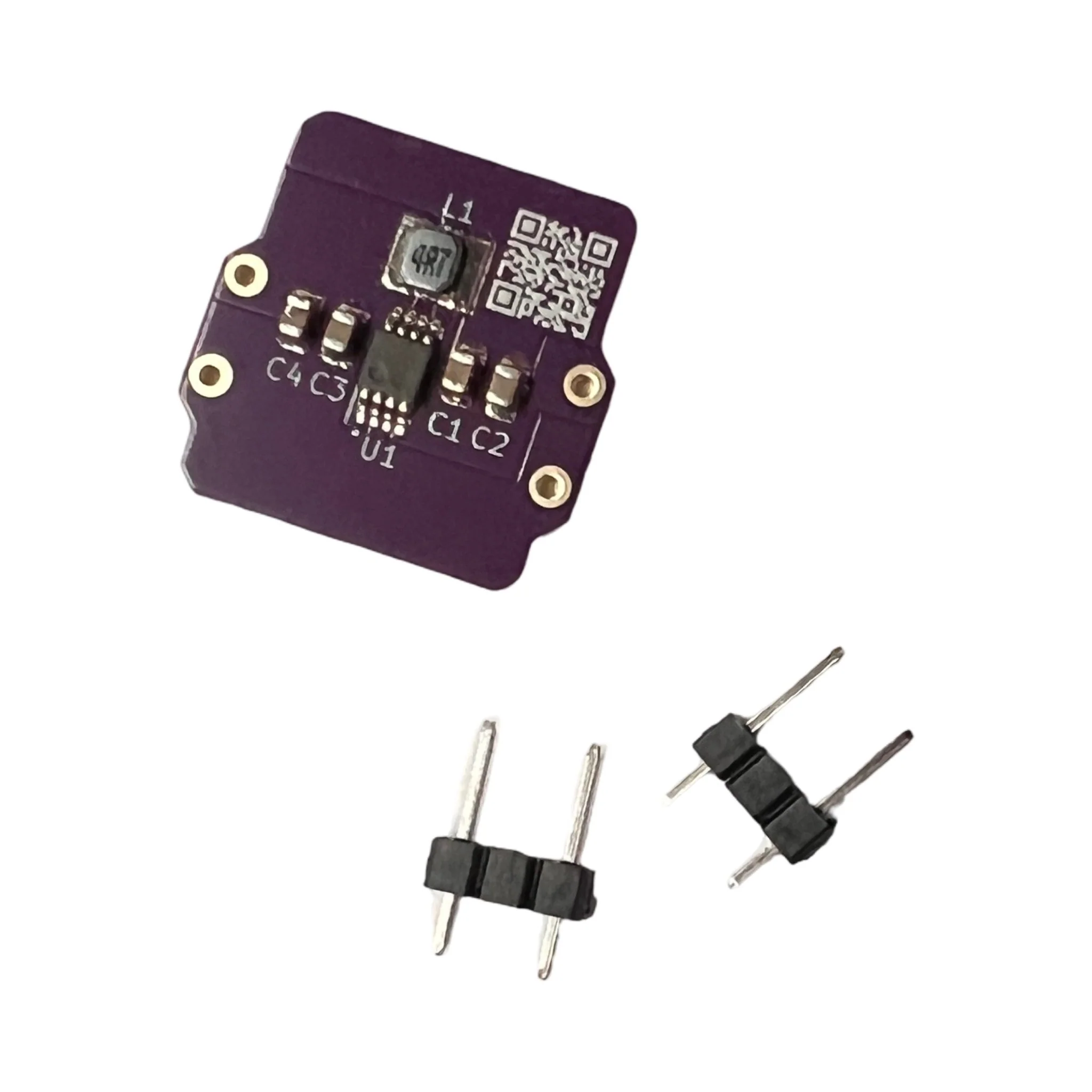

- Included: Regulator PCB and header pins
FAQ
Q: Is this compatible with original Game Boy screens?
No. This regulator is designed for modern IPS and OLED screen upgrades only. Original OEM screens are not compatible.
Q: Does installation require soldering?
Yes. The original power board must be removed and the new regulator soldered to the motherboard using four solder points.
Q: Is this a drop-in installation?
No. Installation requires removal of the original regulator and soldering of the replacement board. This is recommended for experienced installers.
Licensing Information
This product is manufactured in accordance with the original open source hardware design created by Jackv-makes as part of the SGR project. We acknowledge and thank the original creator for making the design publicly available. This regulator is produced without modification, following the original published schematic, layout and parts list.
The original design and documentation are available on GitHub and are released under the license specified by the project author.
Source project: https://github.com/Jackv-makes/SGR/
Product Safety
- Not a toy; intended for electronics modification projects
- Requires soldering; incorrect installation may damage the console
- Contains small parts - keep out of reach of children
- Disconnect all power before installation
- Use appropriate tools and ESD precautions when installing
