USB C Lipo battery mod charging board kit for Nintendo Game Boy Pocket | Giltesa
NOTE: There is no battery included with this product - Charging board only!
Features:
- Custom designed internal charging board mod by Giltesa
- Compatible with Game Boy Pocket - Designed to fit the shape of the board and shell.
- Features a USB C connector, charging control (Charge level and over discharge)
- LED indicator status - White - Powered on, Red - Charging, Green - Fully charged.
- Requires internal soldering and a Li-po battery ( Battery not included)
Description:
Note that this kit does not include a battery - Recommended models to source are 102050 or similar lipo batteries, please check dimensions.
Shell cutting is required to access the USB C port on this mod.
The USB C charging board kit from Giltesa uses the TP4056 and DW01A IC to provide a battery charging solution for the Game Boy Pocket.
The two IC used providing charging of a lipo battery and discharge protection to protect the lifespan of the battery cell.

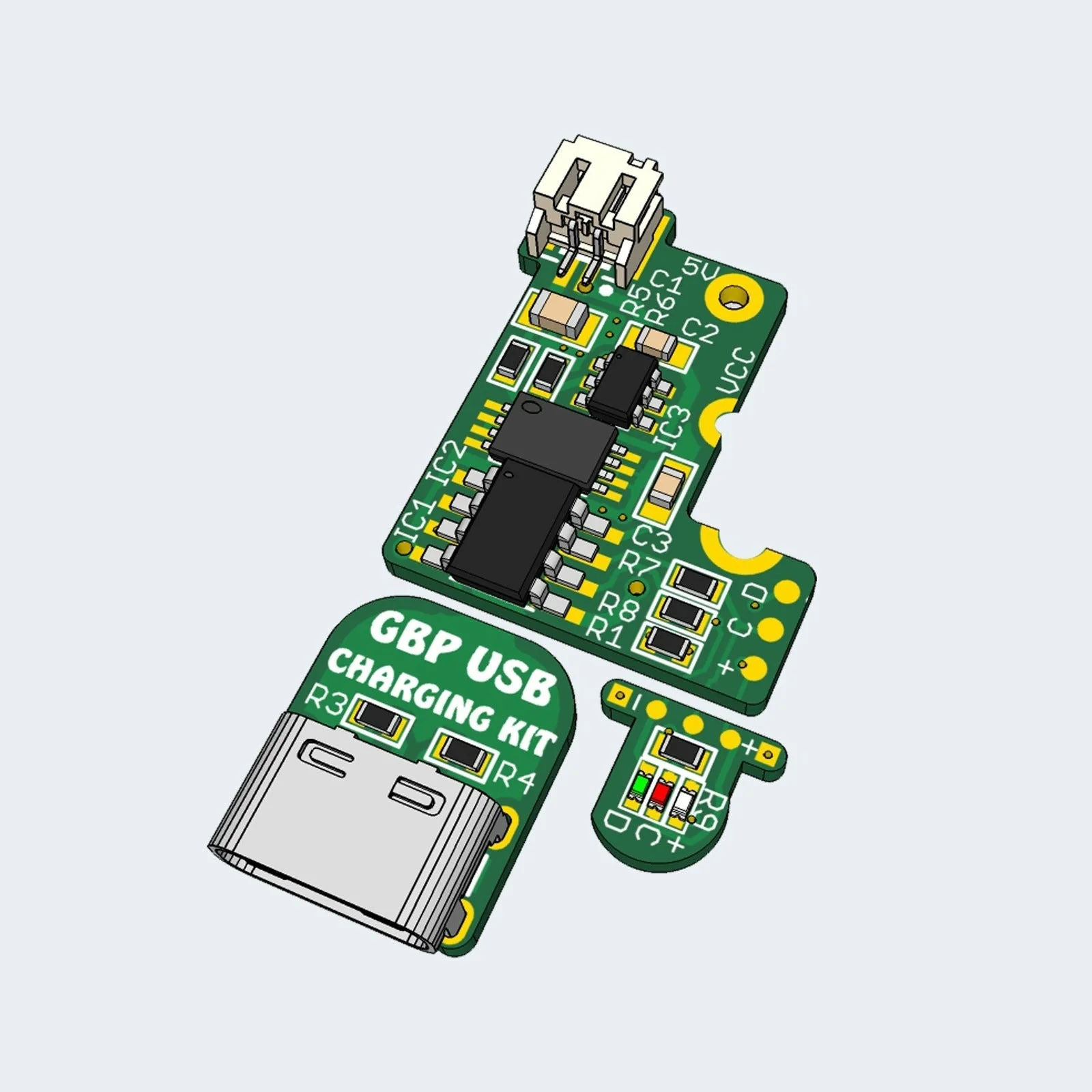

This kit includes three boards, the main charging board, a USB C board, an an optional LED board which requires some additional cable wiring.
The LED board has three status colours, White whilst powered on and playing, Red whilst charging and Green when fully charged.
Also included is a battery cable, LED board cable and LED diffuser (two additional small cables are provided to connect the LED board if your GBP model does not have a red LED)
This board has been designed to work with the original voltage regulator supporting 2 and 4.6V, this board provides a voltage of between 2.75 and 4.2V, within the range of the original regulator. If you opt to change the regulator you should make sure it will fit with this board also installed and also check the voltages are compatible to avoid any issues or damage to the game boy console.
Installation guide / documentation can be found on the Giltesa site here:
https://giltesa.com/2021/05/29/kit-de-carga-usb-c-para-game-boy-pocket
Soldering required to install this mod as well as shell cutting.
Features:
- Custom designed internal charging board mod by Giltesa
- Compatible with Game Boy Pocket - Designed to fit the shape of the board and shell.
- Features a USB C connector, charging control (Charge level and over discharge)
- LED indicator status - White - Powered on, Red - Charging, Green - Fully charged.
- Requires internal soldering and a Li-po battery ( Battery not included)
Description:
Note that this kit does not include a battery - Recommended models to source are 102050 or similar lipo batteries, please check dimensions.
Shell cutting is required to access the USB C port on this mod.
The USB C charging board kit from Giltesa uses the TP4056 and DW01A IC to provide a battery charging solution for the Game Boy Pocket.
The two IC used providing charging of a lipo battery and discharge protection to protect the lifespan of the battery cell.
This kit includes three boards, the main charging board, a USB C board, an an optional LED board which requires some additional cable wiring.
The LED board has three status colours, White whilst powered on and playing, Red whilst charging and Green when fully charged.
Also included is a battery cable, LED board cable and LED diffuser (two additional small cables are provided to connect the LED board if your GBP model does not have a red LED)
This board has been designed to work with the original voltage regulator supporting 2 and 4.6V, this board provides a voltage of between 2.75 and 4.2V, within the range of the original regulator. If you opt to change the regulator you should make sure it will fit with this board also installed and also check the voltages are compatible to avoid any issues or damage to the game boy console.
Installation guide / documentation can be found on the Giltesa site here:
https://giltesa.com/2021/05/29/kit-de-carga-usb-c-para-game-boy-pocket
Soldering required to install this mod as well as shell cutting.
